3D Wound Core

Safe, reliable, environment-friendly, energy-saving and quiet. The winding section of the 3D wound core transformer is circular, the force is uniform, and the compressive resistance is strong when it is subjected to short-circuit electric power. The circular coil, the oil (gas) channel is uniform, the three-phase coil is arranged in an equilateral triangle, and the temperature rise of the hot spot is low.

Product Description

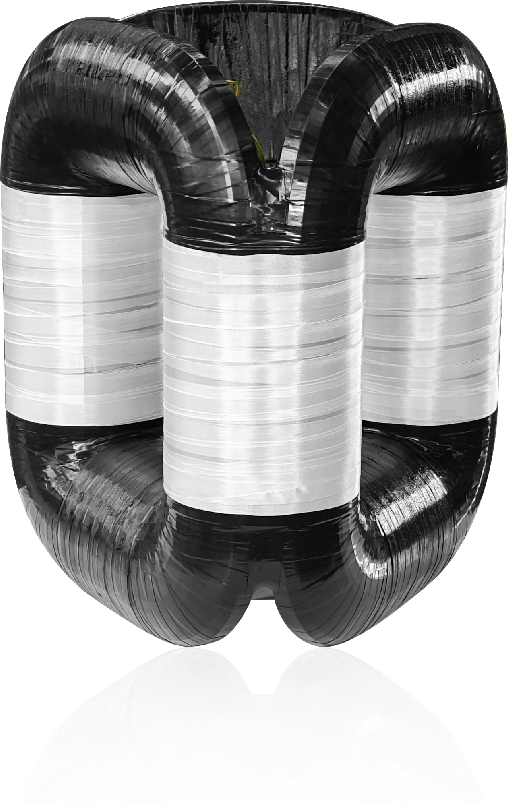

The 3D wound core is made of electrical steel strip or amorphous alloy strip, and three rectangular core frames with approximately semicircular cross-section and identical geometric dimensions are obtained. A 3D structure with an equilateral triangle in the top view direction is obtained.

Product Advantages

Safe and reliable

Three-phase balance,strong short-circuit withstanding ability, even temperature field

Environmentally friendly

Material saving,smaller strength of peripheral electromagnetic field (smaller radiation)

Energy saving

Low no-load loss, low load loss and low no-load current

Quiet

Low noise

Comparison of Product Performance

remark：Comparison at the same cost

Range Of Application

It is suitable for various power transmission and distribution fields, especially for data centers, super high-rise buildings, rail transit, new energy fields, commercial centers, residential quarters, industrial and mining enterprises, oil platforms and other power transmission/distribution systems that require high environmental protection and fire protection.
